TGA®Transparent Thermal Insulation Coatings For Glass

★Waterproof and Anticorrosion      ★Wear protection      ★Anti-fouling Self-cleaning

★Heat Insulating      ★Fire and Flame Retardan

                   Product Introduction Of TGA Transparent Thermal Insulation Coating For Glass

             1、Importance Of Thermal Insulation For Glass

                 Glass can give buildings better architectural aesthetics and light transmission function.But in hot summer, glass should absorb at least 70% of solar heat.The external heat

                energy can easily penetrate through the glass, which makes the indoor temperature rise, the body feel poor and sultry, and the energy consumption of air conditioning also

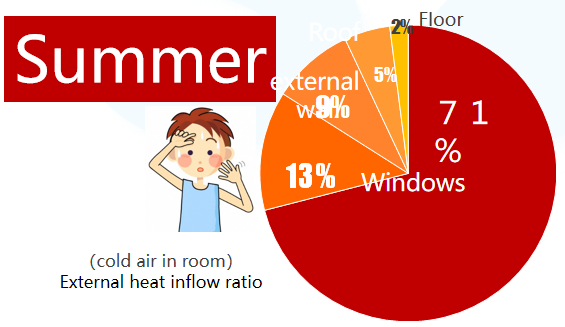

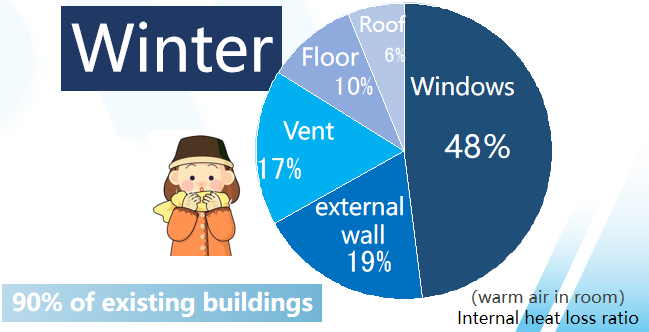

               rises. In summer, 71% of the solar heat flows into the room through glass; In winter, 48% of indoor heating heat is lost by glass. The heat flux of the wall with the largest

               area in contact with the outside air is also 13 ~ 19%; The heat flow of the roof that is most exposed to sunlight is only 6 ~ 9%.

                       2、Product Introduction

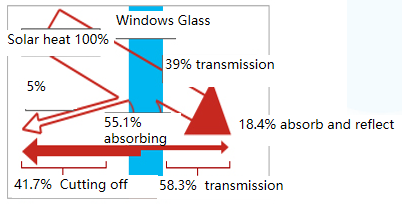

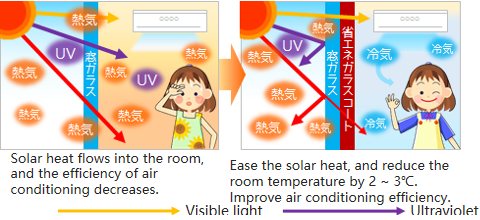

     Mechanism of isolating solar heat

       Suppose the solar heat shines on the window glass by 100%, it will reflects 5%,the glass surface absorbs 55%.Of the 55%,about 2/3 or

36.7% is reradiated ,and 1/3 or 18.4% remains in the room. In the word,the reflection of 5%plus the radiation of 36.7% is 41.7% cut off.

         3、Heat Insulation And Sun Protection

                  TGA@ transparent glass thermal insulation coating can form a 4~5 micron ultra-thin thermal insulation film on the glass surface as long as it is rolled without affecting the

                  transparency and beauty of glass, thus achieving the effect of energy saving, thermal insulation and cooling. The coating has high definition, so it also has good hardness,

                 adhesion, aging resistance, temperature change resistance, freeze-thaw resistance and other properties. With the addition of nano-metal oxide, it strengthens the reflection

                 function of near-infrared band above 780nm, and the heat insulation and sun protection effect is excellent! TGA@ transparent glass thermal insulation coating can effectively

                 block 80% of outdoor infrared rays in summer, reduce the temperature of the sunned area by 15~20℃, and reduce the indoor temperature by 6~8℃, saving energy consumption

                 of air conditioning and refrigeration by more than 40%. After three years of construction, the construction cost can be recovered, and the service life is more than ten years!

          4、Energy Saving Test

                  Four laboratories with the same conditions were set up to test the indoor temperature of the "uncoated room" and the "coated room". The results showed that the

                  temperature of the coated room (in the middle of the room) was 5~6 degrees lower than that of the uncoated room. The calculation result showed that the air

                  conditioning fee was reduced by 28% during the year. (Calculated by 10% energy-saving effect of 1℃ change of air conditioning set temperature) The construction

                  cost can be recovered in 2~3 years.

                                                          - Compare the indoor temperature according to the change of the outside temperature. -

          5、Energy Saving Effect

                   Summer---It can block the infrared rays in the sunlight, and can lower the room temperature by 3~7℃, which is equivalent to raising the set temperature of the

                   air conditioner by 3~7℃. Usually, it can reduce the power consumption by about 64.8kWh per month and save the electricity bill by about 68.03 yuan/month.。

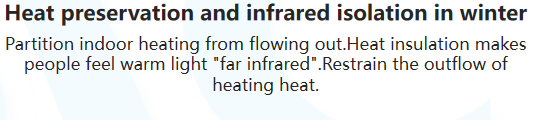

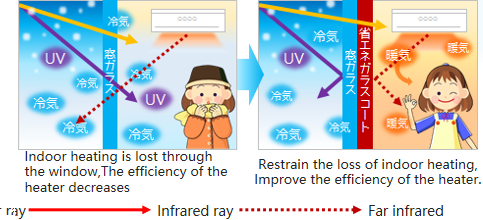

                   Winter---It can shield the middle and far infrared rays from indoor to outdoor, with a shielding rate of 90%, which can well maintain the room temperature and

                   reduce the energy-saving effect of heating.

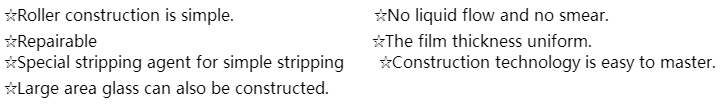

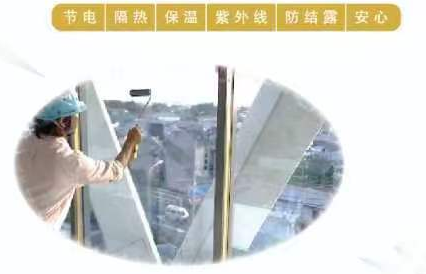

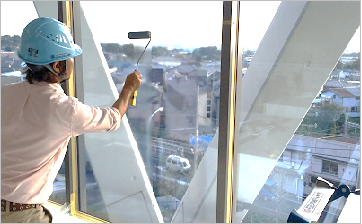

          6、Drum Construction Method
